Longspan Shelving

Key features

Simple frame and beam tap together assembly with a wide range of frame and beam sizes.

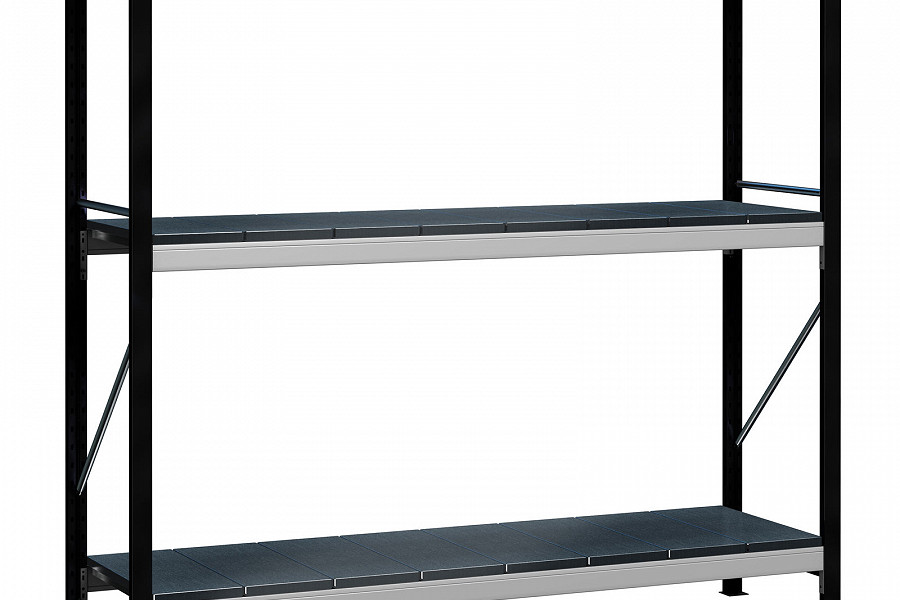

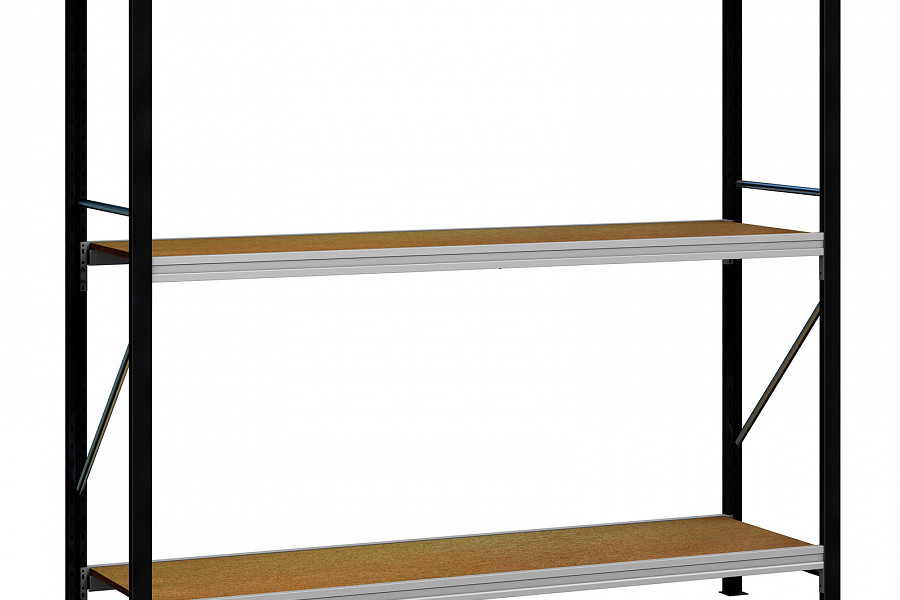

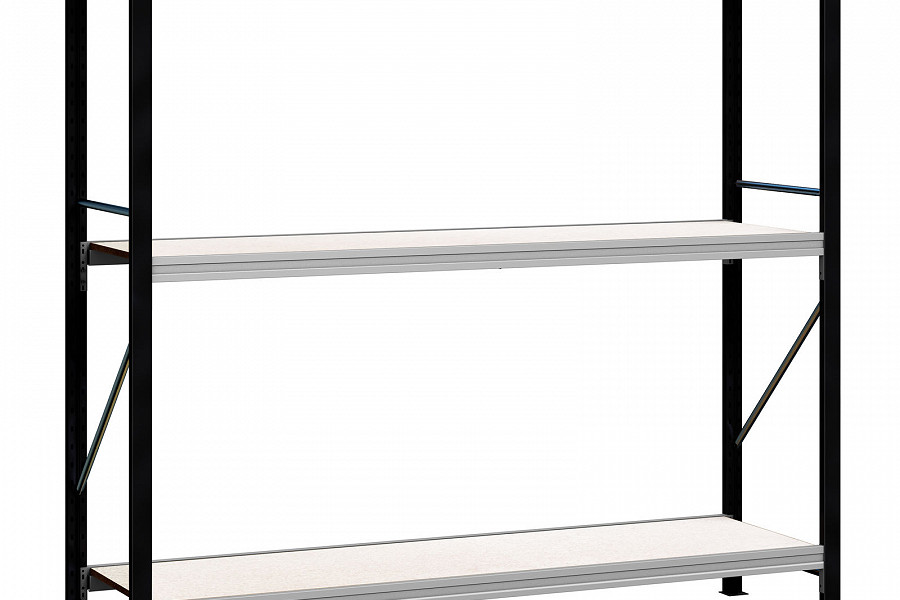

A range of shelf types can be selected such as steel, mesh, chipboard and timber to suit storage requirements.

Designed to safely support the greatest range of bulk storage loads. Ideal for hand loaded storage of heavy, large or awkward items and where product holding changes regularly.

Beam Levels adjustable on 50mm pitch. Up to 1814kg UDSWL capacity per level.

From simple starter and extension bays to multi-tiered longspan structures.

Product information

Longspan shelving is designed to store manually loaded heavy, bulky or long items.

It is a beam system, which fasten securely onto uprights providing wider aperture bays, compared to steel shelving.

Longspan’s modular design gives maximum storage in minutes and canbe easily adjusted and configured as stock changes - making it a highly efficient, cost effective solution.

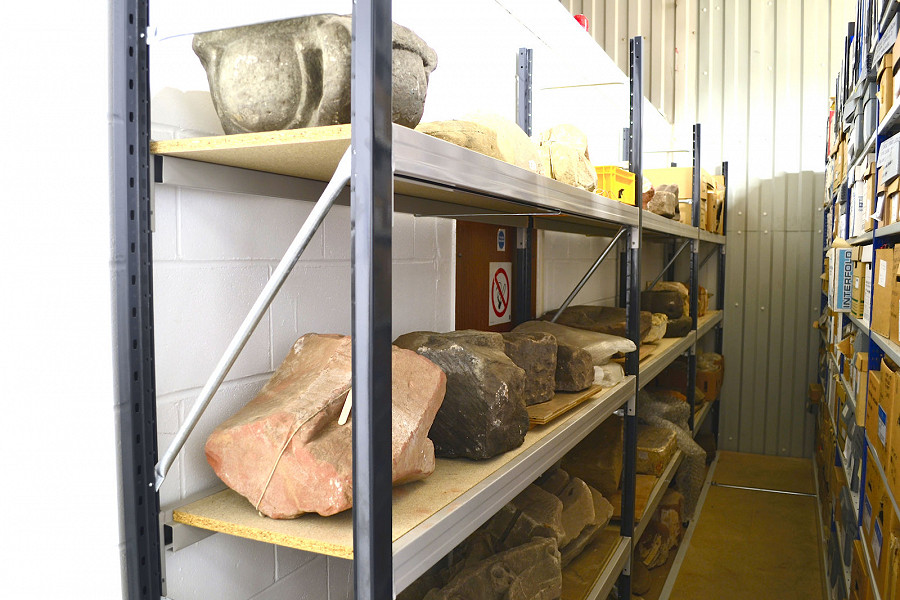

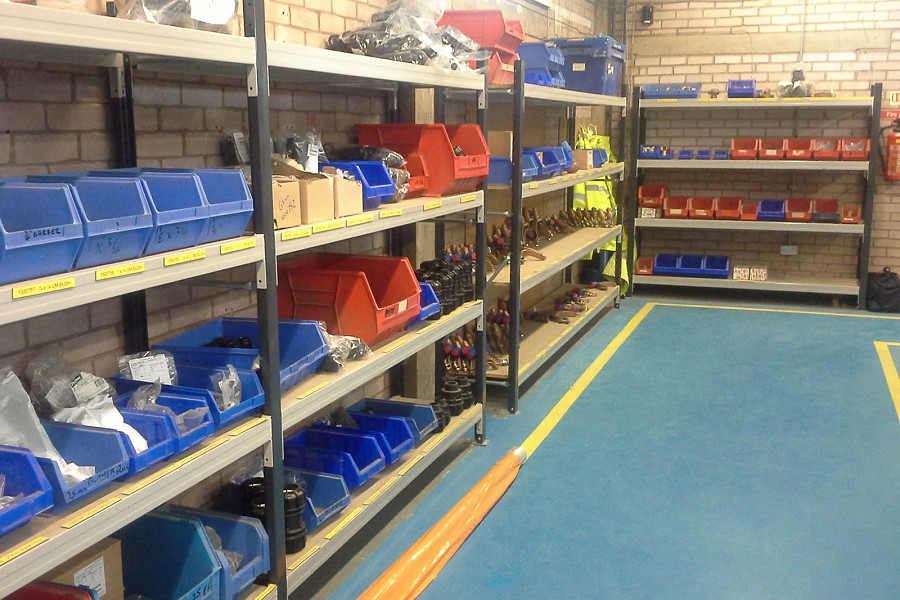

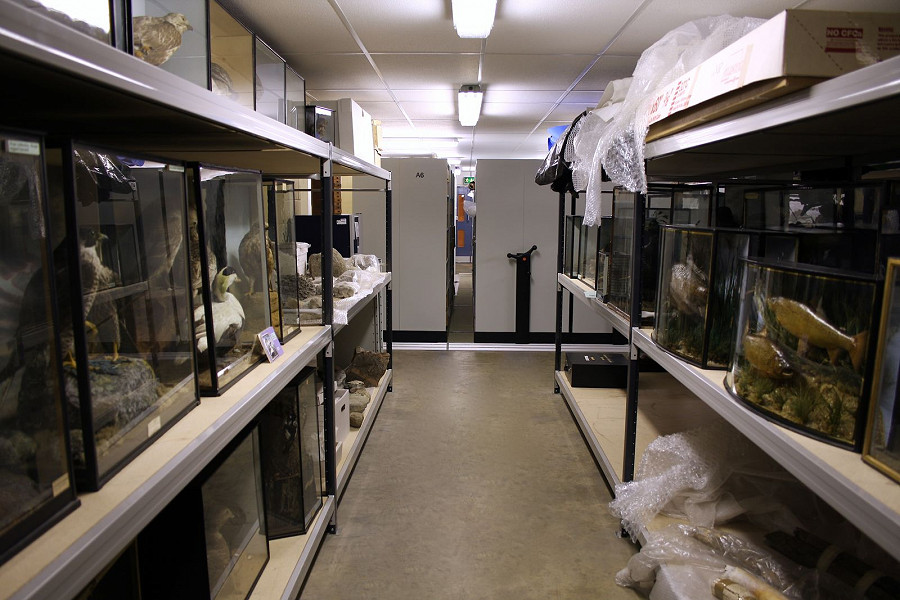

From simple stand-alone shelf units to automated order-picking installations, Longspan gives the same reliability, quality and performance.Use Longspan as a space saver, maximising height in narrow-aisle storage installations; use it in conjunction with mobile shelving schemes for high density storage where space is at a premium; use it in shops and offices, schools and hospitals; use it anywhere and everywhere there’s a need for efficient, hard-wearing storage.

Bays can be tailored to meet exact storage requirements with add-on accessories based on its modular design. This also allows for simple amendments or relocation of the system in the future.

It comes in a range of standard colours and can be designed as a multi-tier structure as well as be used in collaboration with out mobile systems.

Specification

Frame Types:

Open Frames.
Fully Clad Frames.
Mesh Clad Frames.

Frame Heights:

1200mm – 4050mm - Increasing in 150mm increments.

Frame Depths:

450mm / 600mm / 750mm / 900mm / 1000mm / 1200mm

Frame Capacity:

Up to 6,829kg (for a steel clad frame).

Beam Lengths:

1050mm / 1200mm / 1350mm / 1500mm / 1650mm / 1800mm / 1950mm / 2100mm / 2250mm / 2400mm / 2550mm / 2700mm / 2850mm / 3000m

Shelving Capacity:

Loading capacity (per shelf level):

Up to 1814kg for a (Uniform Distributed Load) UDL

Finish:

Frame components and shelves come in a range of standard and non-standard (available on a longer lead time) colours:

Standard Colours:

Light Grey – GW (BS 4800 00 A05) – For all Components / Graphite Grey – GX (BS 5252 18 A14) – For Uprights

Non-Standard Colours (for Uprights):

Light Grey – GW (BS 4800 00 A05) / Suave Blue – BQ (BS 5252 20 E58) / Rich Burgundy - BD (BS 5252 04 E58) / Euro Green – GM (RAL 6011) / (Other colours available subject to surcharge, volume and lead time).

Other Material Finishes:

Zinc Plated (Clear Passivated) – ZC / Pre-Galvanised Material (with paint-dip identification) – GP / Pre-Galvanised Material - GT
