Heavy Duty Shelving

Key features

  • Modular design allowing installation to be easily extended.

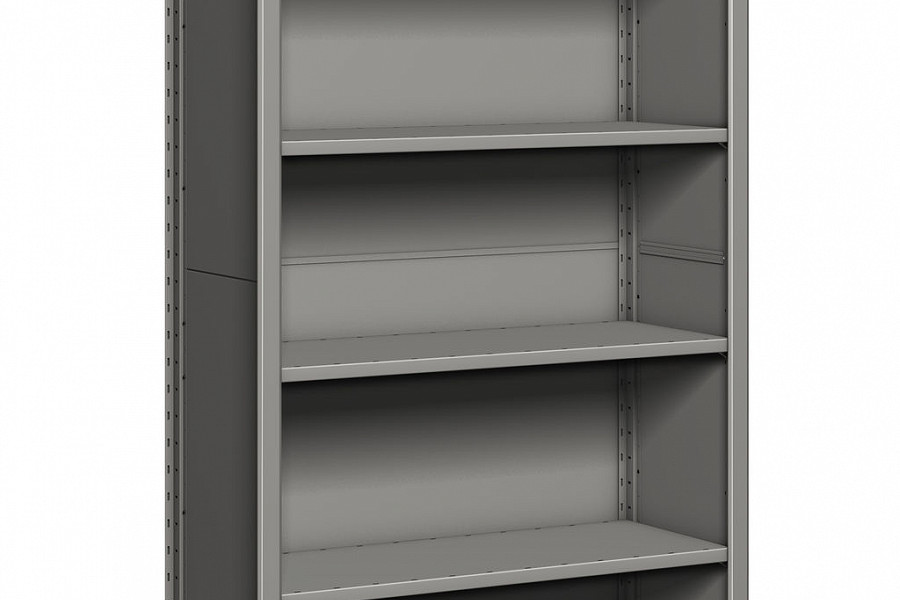

  • Available as Open All Round or Fully Clad bays.
  • Wide range of accessories to tailor your shelving to meet your exact needs.
  • Adjustable steel shelves on 50mm pitch. Up to 350kg UDSWL shelf capacity.
  • From simple starter and extension bays to multi-tiered shelving structures.
Read more

Product information

Our robust heavy-duty shelving system is a fully adjustable steel shelving system offering simple and fast assembly and benefits from:

  • Designed for all hand loaded medium to heavy duty storage applications. With its range of frames and shelves it allows flexible bay construction.
  • The modular design allows for creation of shelving runs by adding extension bays to an initial bay.
  • Shelf design gives superior load bearing strength and rigidity where required together with the shelf clips which create a reliable support to prevent accidental shelf dislodgement.
  • Bays can be tailored to meet exact storage requirements with add-on accessories within its modular design. This also allows for simple amendments or relocation of the system in the future.
  • It comes in a range of standard colours which incorporates ActiveCoat anti-bacterial protection.

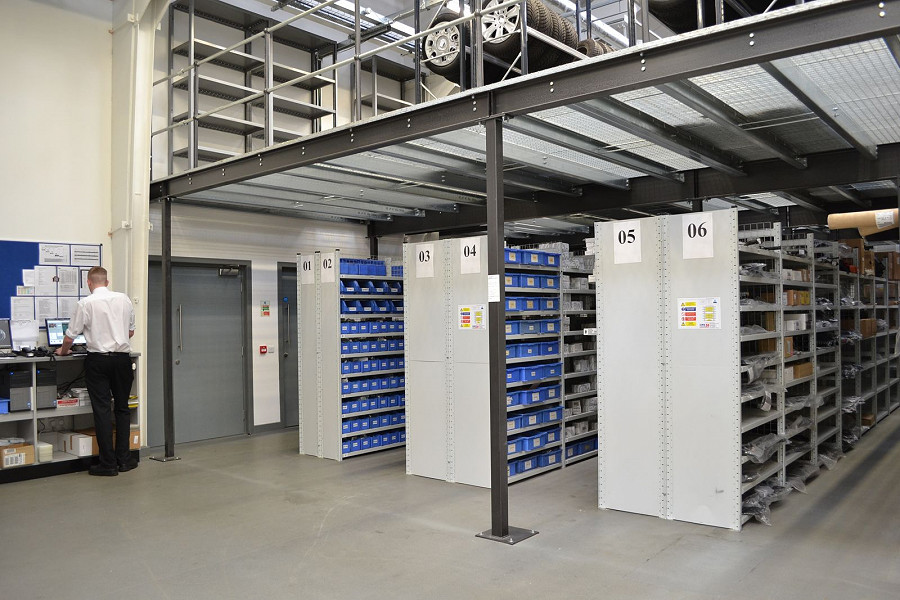

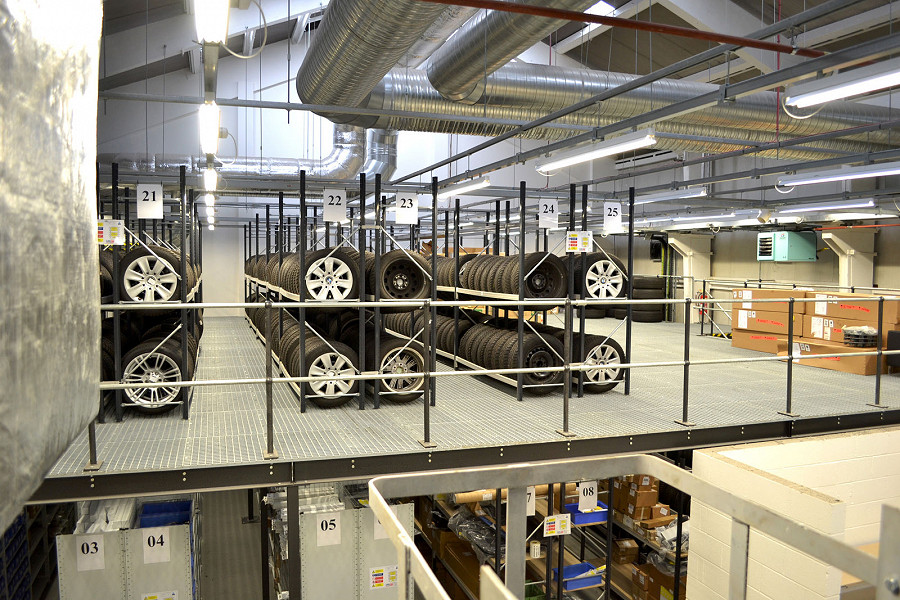

  • Can be designed as a multi-tier structure as well as be used in collaboration with our mobile systems.

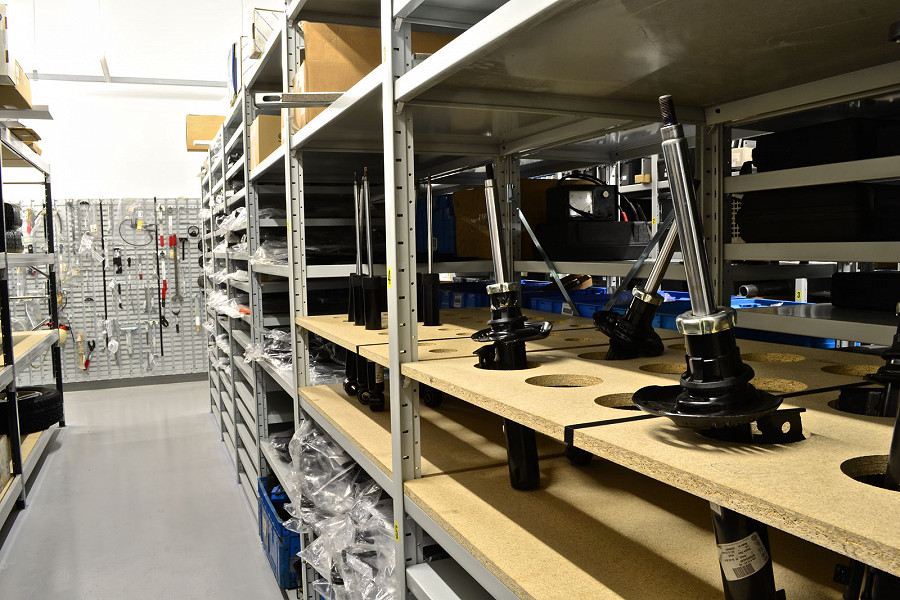

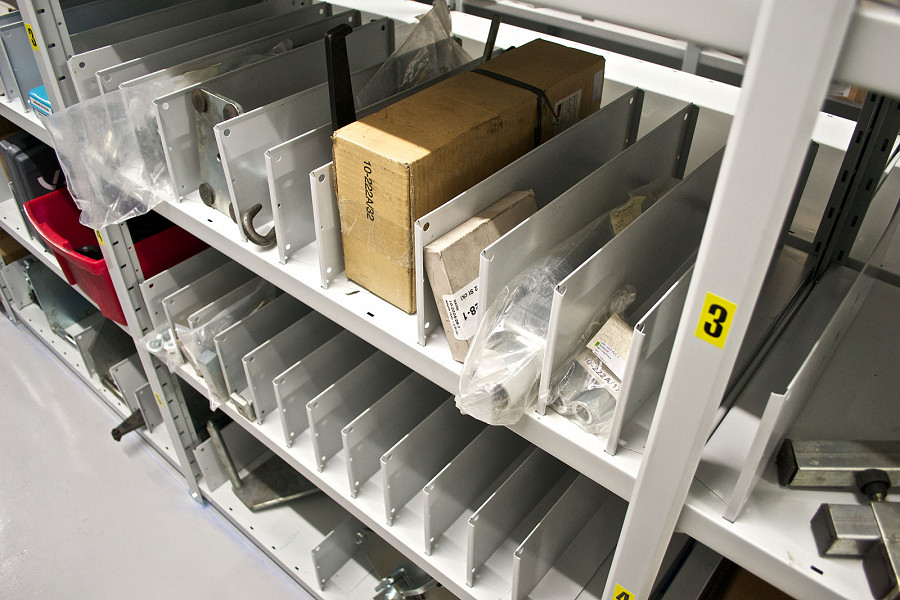

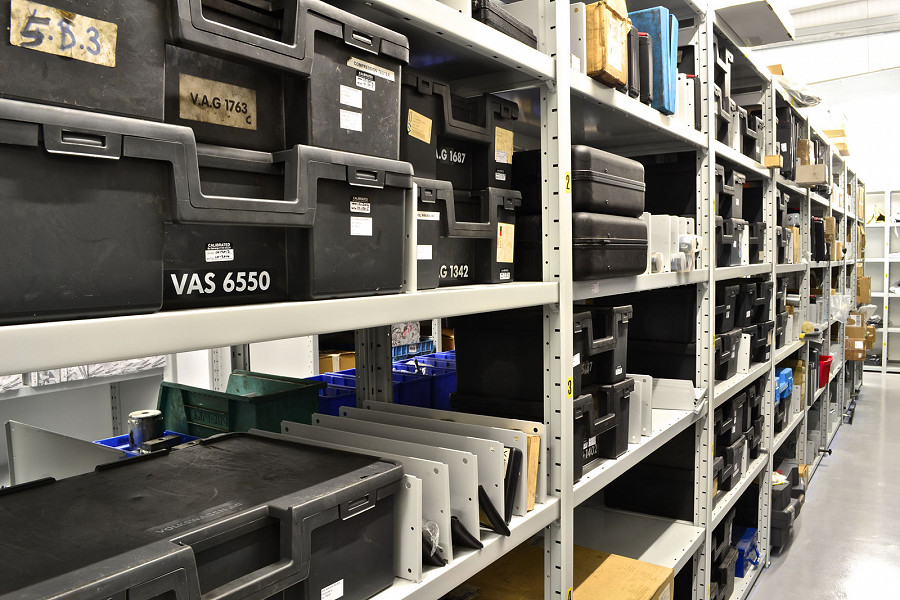

In workshops, offices and throughout industry, HD Shelving system provides a functional and robust solution for all heavy duty storage applications. For the automotive trade, it’s an ideal solution to the problem of organised small parts storage and the storing the wide range of sizes, shapes and weights of components.

With its extensive range of bay heights, widths, depths and duties, this shelving can expand as your storage requirements grow. A basic ‘starter’ shelving bay can be constructed in minutes using upright frames and matching adjustable shelves, then extended to create runs of single sided or back-to-back open or clad shelving.

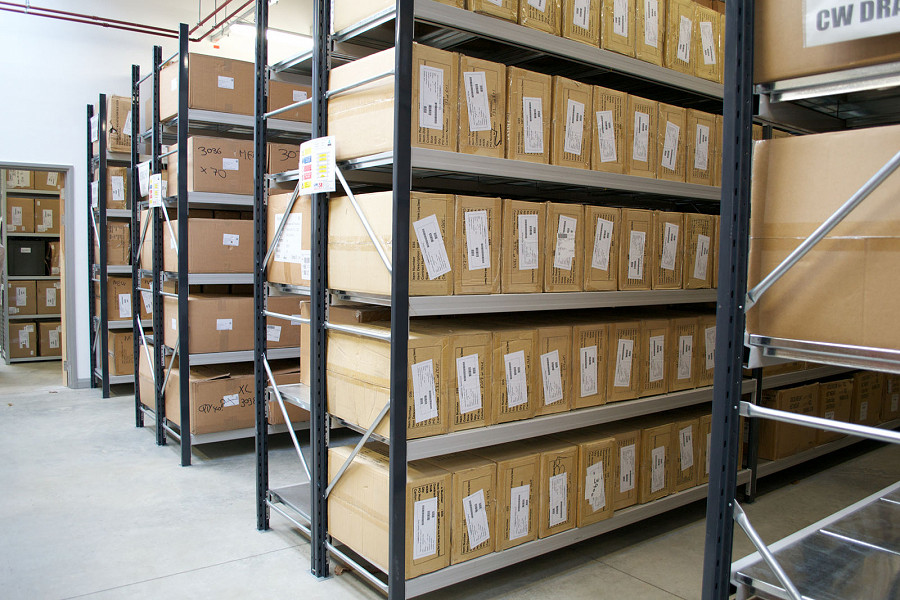

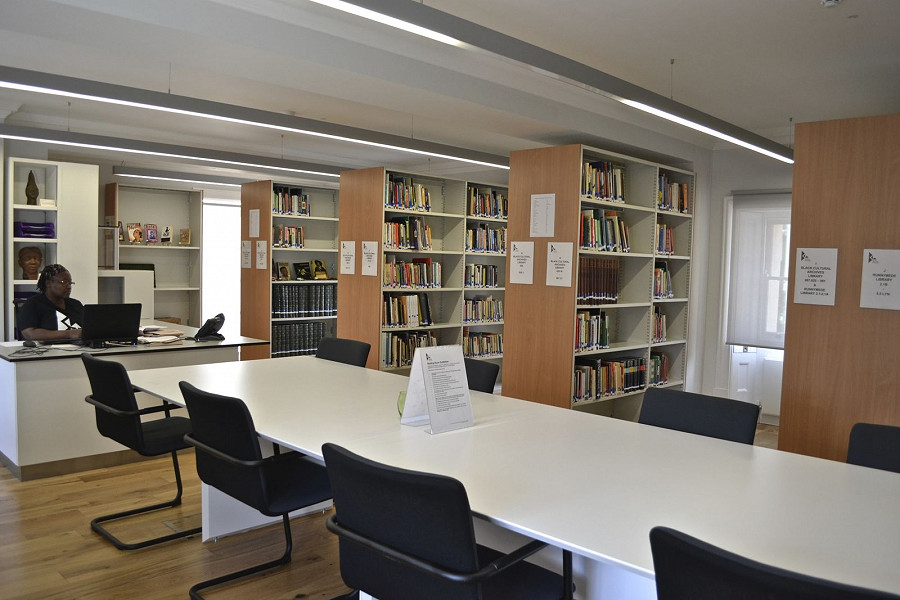

And because it’s so versatile, Heavy Duty Shelving is the ideal choice to cope with the growing requirements of warehouses, stores, museums, galleries and other long term storage facilities.

The HD Shelving range of accessories allows you to tailor your storage to your needs, giving you the reassurance that the system can adapt to meet future changing storage requirements.



Specification

3 Frame Types (Standard Duty, Heavy Duty & Extra Heavy Duty):

  • Open Battoned Frames.

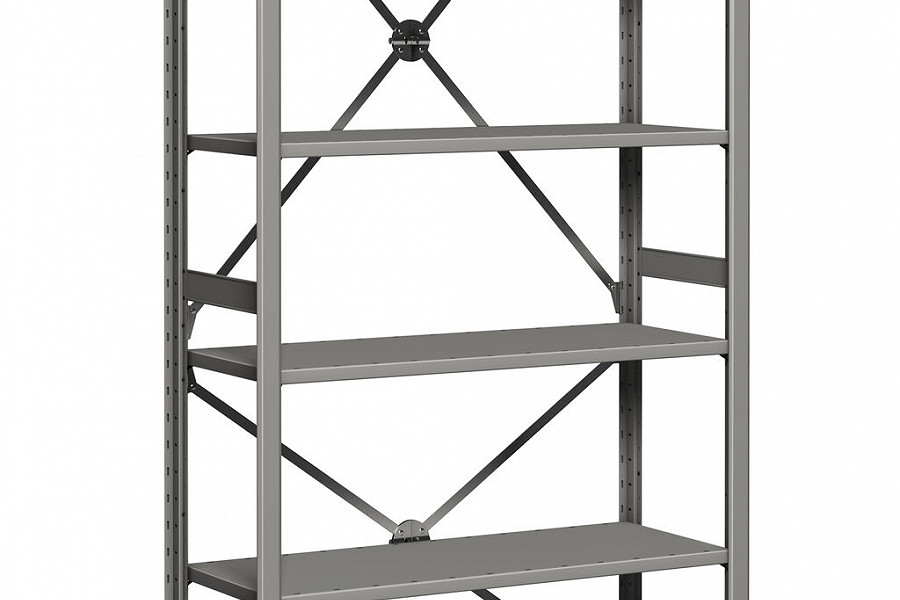

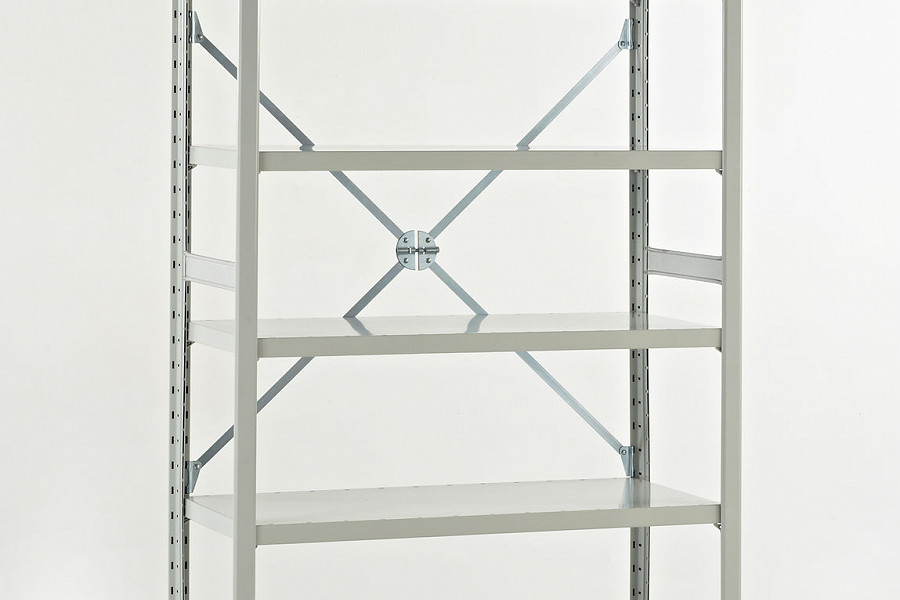

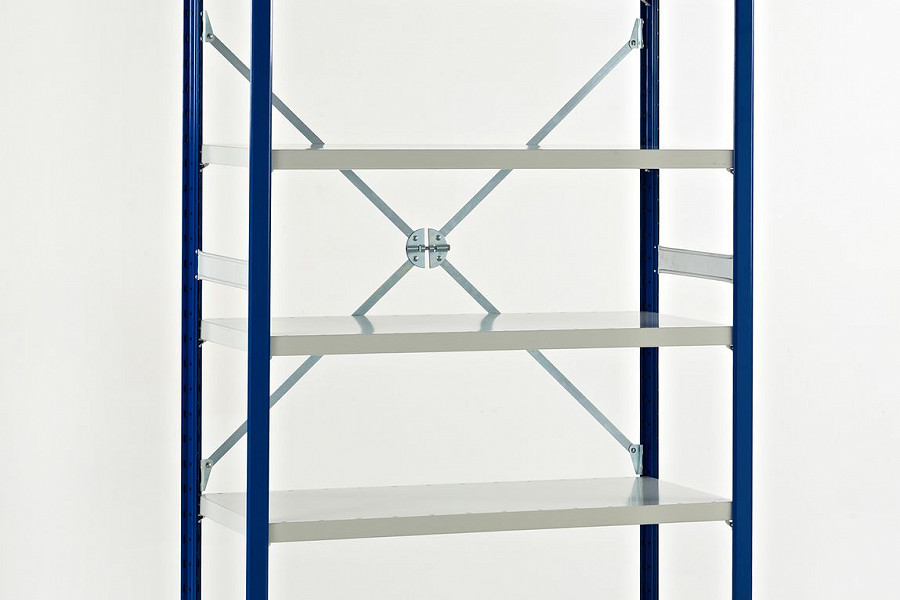

  • Open Cross Braced Frames.
  • Fully Clad Frames.
  • Perforated Clad Frames

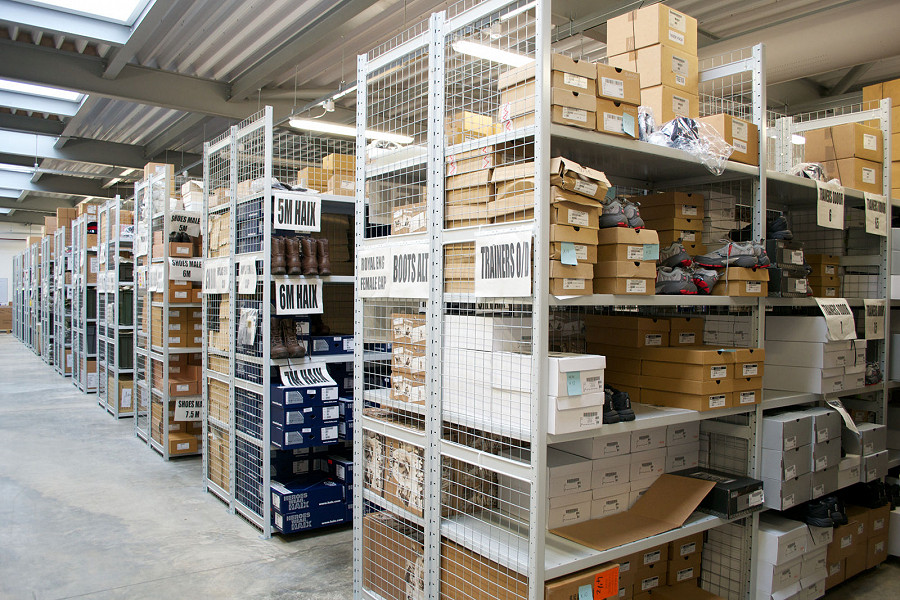

  • Open Battoned Frames with Mesh Panels
  • All Frames are slotted on a 5mm pitch for shelf adjustment.

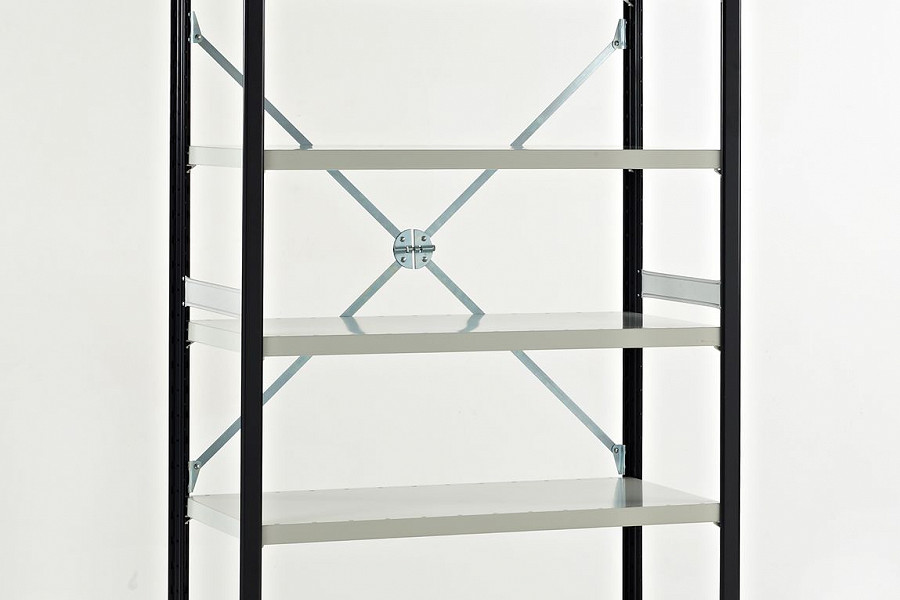

  • Frames attached by either Cross Bracing (cost effective) or Rear Cladding (giving a completely solid bay when used with solid frames).

Frame Heights:

  • 1200mm – 3600mm - Increasing in 150mm increments.

Shelf Depths:

  • 250mm / 300mm / 400mm / 450mm / 500mm / 600mm / 750mm / 900mm

Shelf Widths:

  • 900mm / 1000mm / 1200mm / 1250mm

Shelving Capacity:

Loading capacity (per shelf):

  • Standard Duty: Up to 200kg for a (Uniform Distributed Load) UDL
  • Heavy Duty: Up to 270kg for a UDL
  • Extra Heavy Duty: Up to 350kg for a UDL

Finish:

Frame components and shelves come in a range of standard and non-standard (available on a longer lead time) colours:

Standard Colours: Light Grey (RAL 7035) / Graphite Grey (VS5252 18 A14) / White (RAL 9016) / Suave Blue (BS5252 20 E56)

Non-Standard Colours (include): Traffic Red / Marine Blue / Racing Green (Other colours available subject to surcharge, volume and lead time).
