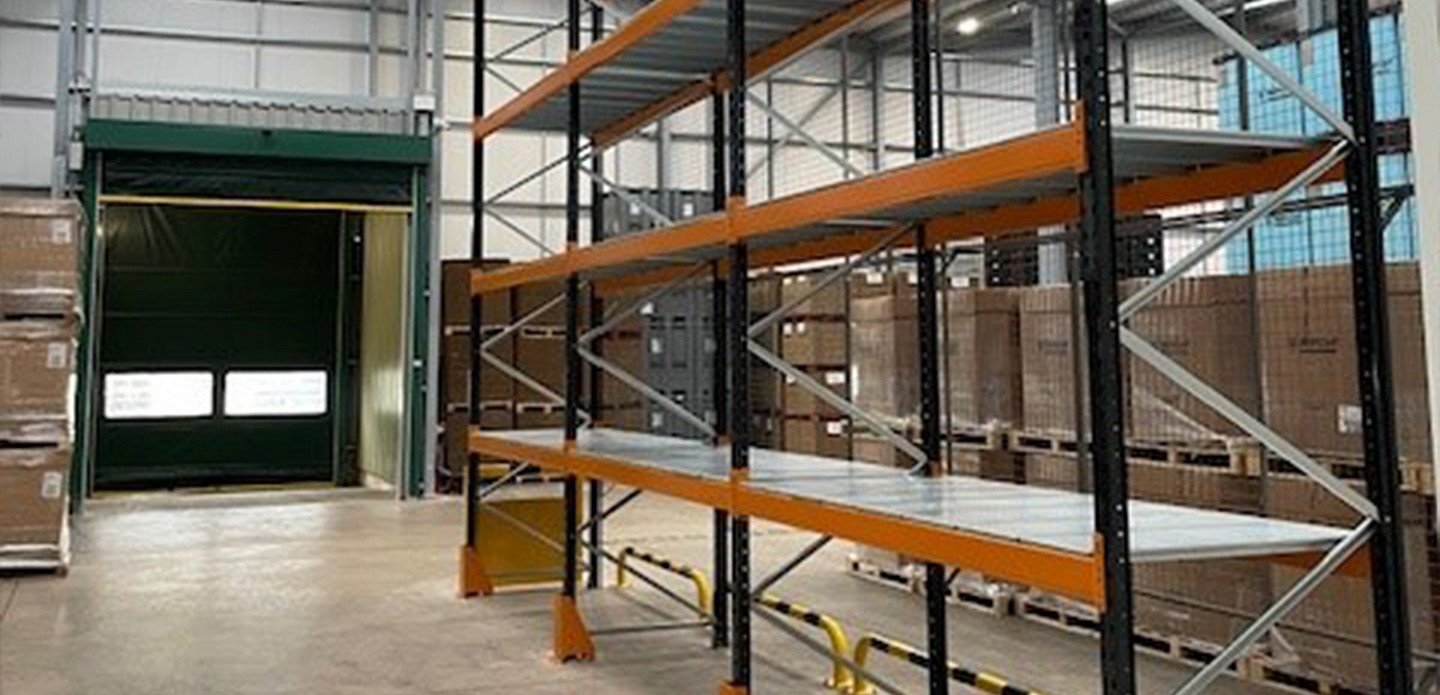

Adjustable Pallet Racking

Adjustable pallet Racking c/w Upright Protection, Steel Decks and Anti-Collapse Mesh Screen.

1 off run of adjustable pallet racking, nominally 8460mm Long (3 off 2700mm c/e wide bays plus the uprights) x 8100mm High x 1100mm Deep. Each bay has 4 off beam levels with a uniformly distributed loading (UDL) of 2732kgs (downrated from 3000kgs UDL due to max loading of the Solid Steel Decks).

12 off Beam Levels to be fitted with Solid Steel Decks (48 off 300mm W x 1100mm D & 48 off 375mm W x 1100mm D) – Each 2700mm x 1100mm beam level has a loading of 2732kgs (UDL).

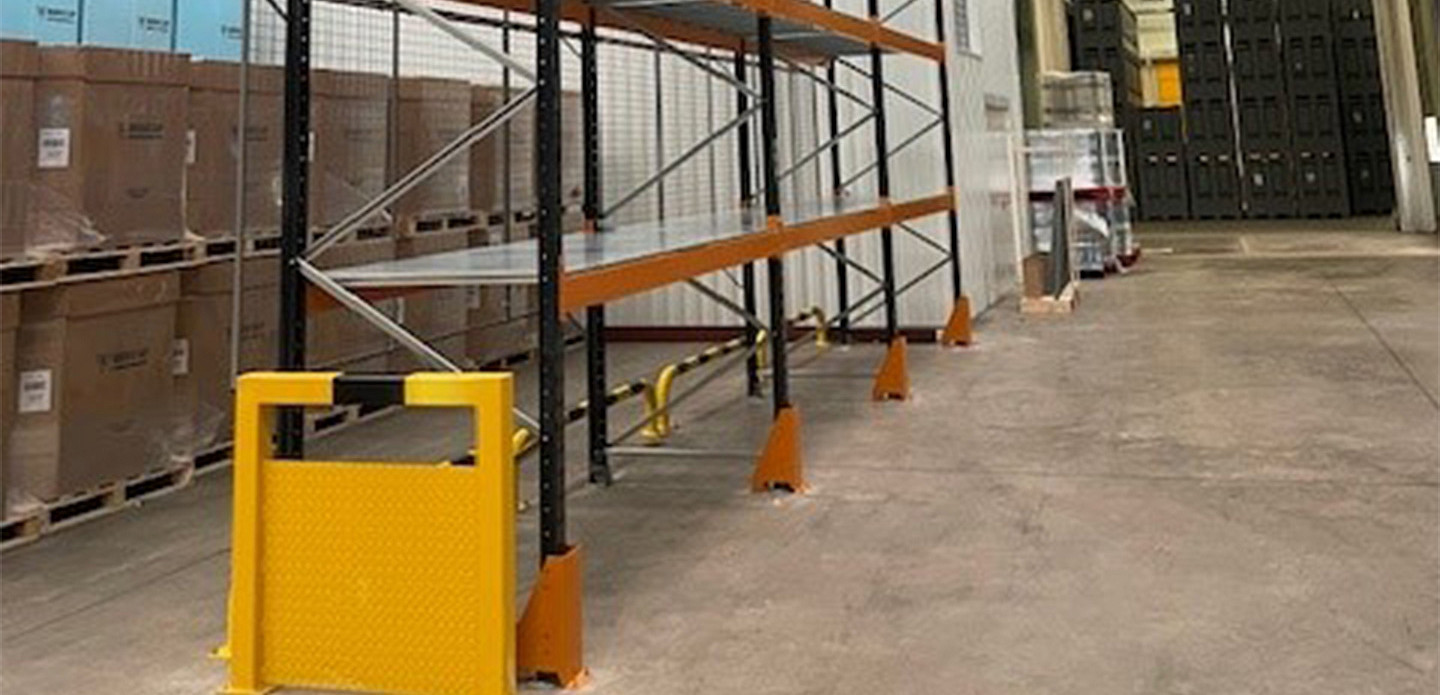

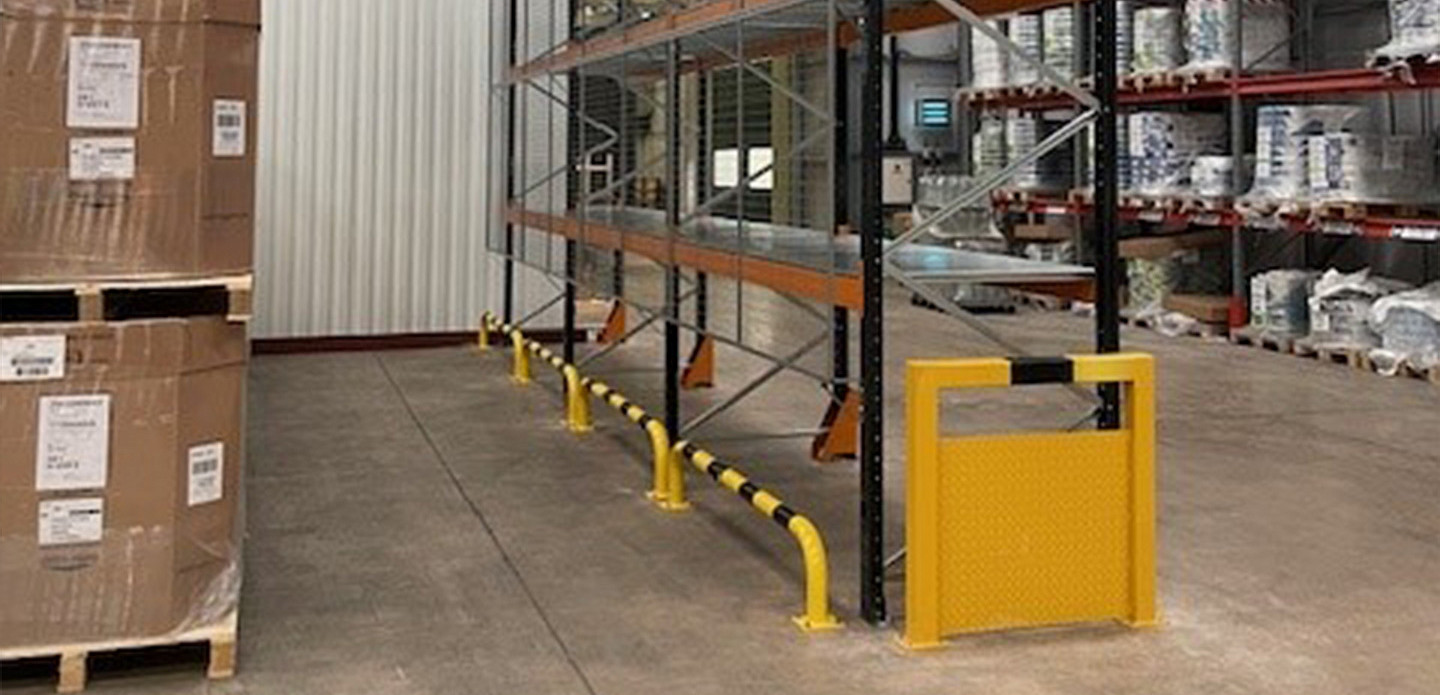

4 off UP400OR - Upright Protection Guards – 400mm high, fitted to each of the front uprights.

1 off Anti-Collapse Mesh Screen fitted to the rear of the run of pallet racking – 8370mm Long x 6900mm High x 150mm Stand-off, starting just below the first beam level.
